Constant Current Generator (CB19949E)

Details
Written by: Newton C. Braga

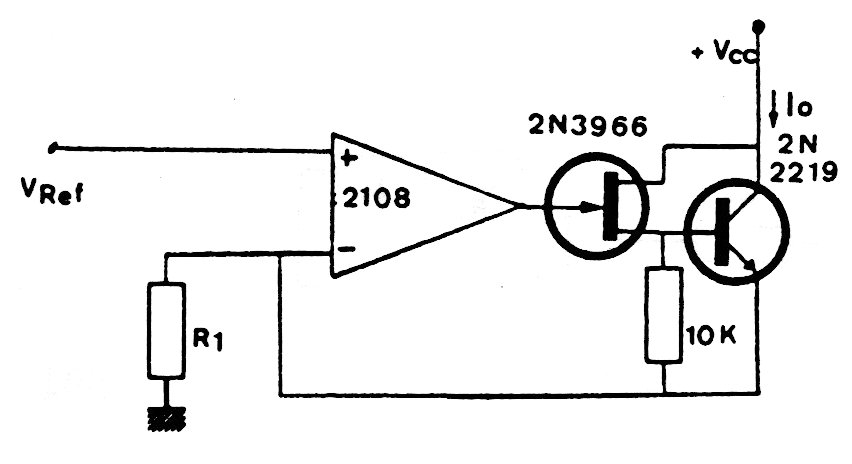

This circuit generates a constant current given by R1. The load is on the high side of the feed (High Side). The circuit admits equivalent operationals and the source must be symmetrical.
