Crystal Radio (CB19987E)

Details
Written by: Newton C. Braga

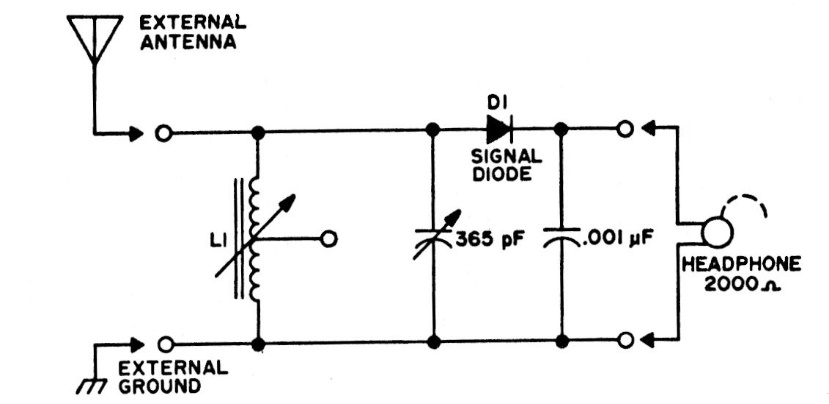

This crystal or galena radio is one of the many versions available on this website. This is from a documentation from the 70s. The coil is formed by 50 + 50 turns of wire 28 in a ferrite rod.




| Clique na imagem para ampliar |
