Amplitude Modulator (CB19820E)

Details
Written by: Newton C. Braga

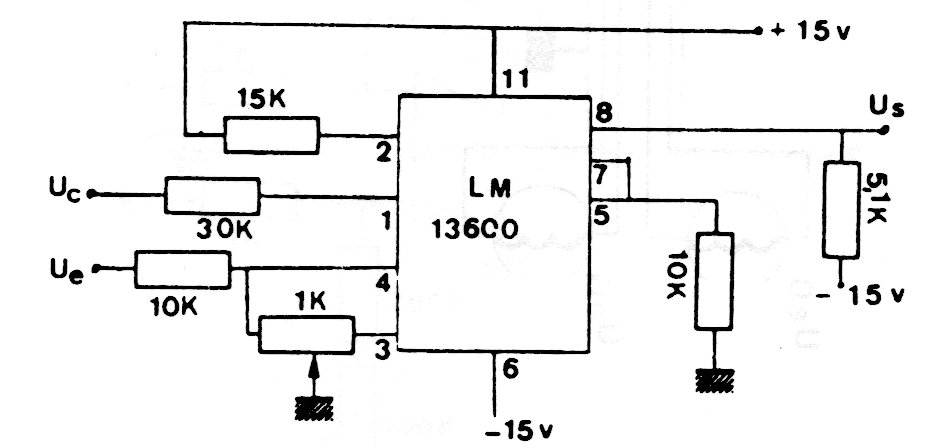

This modulator circuit for low intensity signals is from old documentation. The integrated circuit used is uncommon today. The circuit operates with signals up to 2MHz.
