Transistor Tester (CB19586E)

Details
Written by: Newton C. Braga

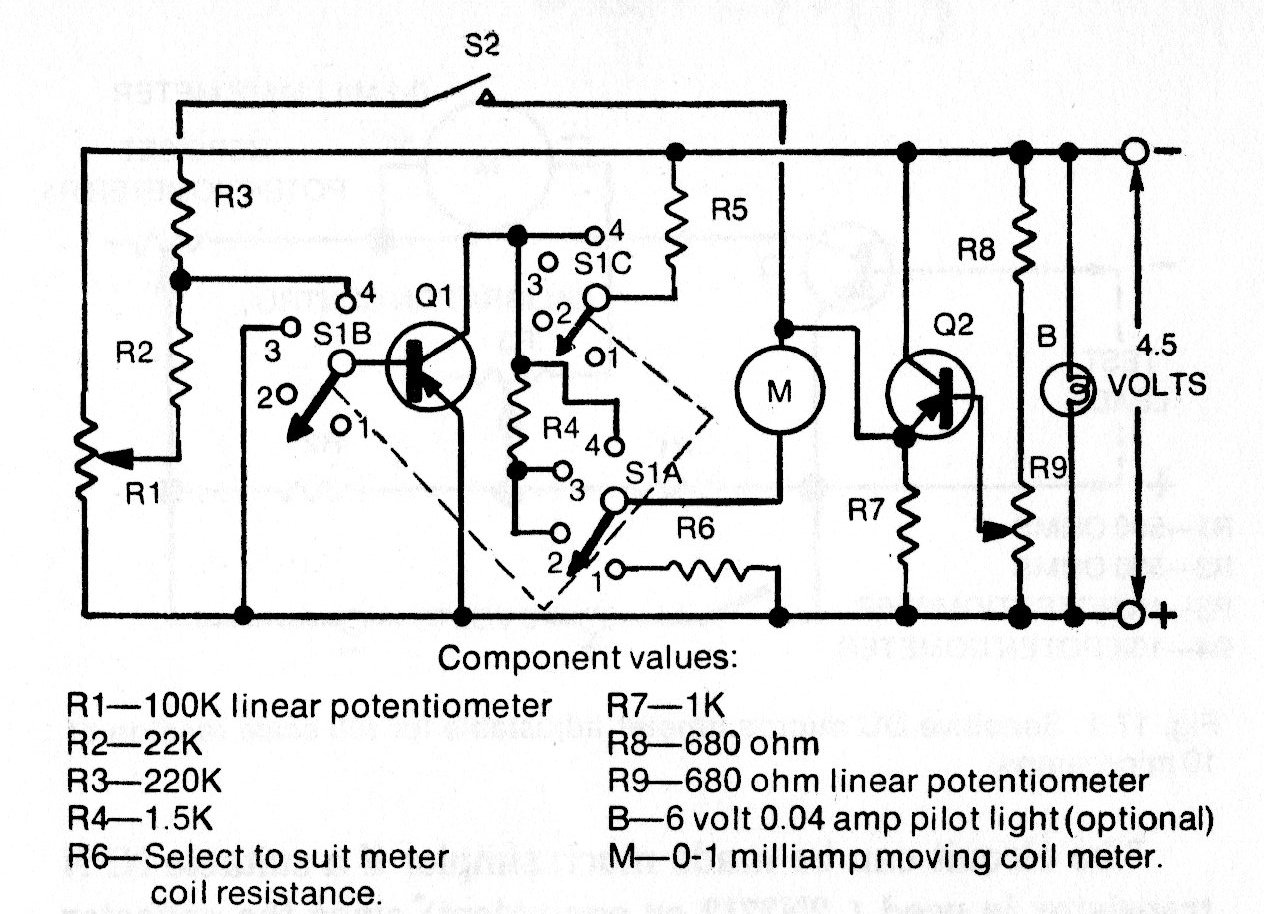

This transistor tester with different gain ranges was found in documentation from the 1980s. The circuit can still be implemented with more modern components and used with general purpose transistors.
