Sensor Amplifier with Strobe (Cb19988E)

Details
Written by: Newton C. Braga

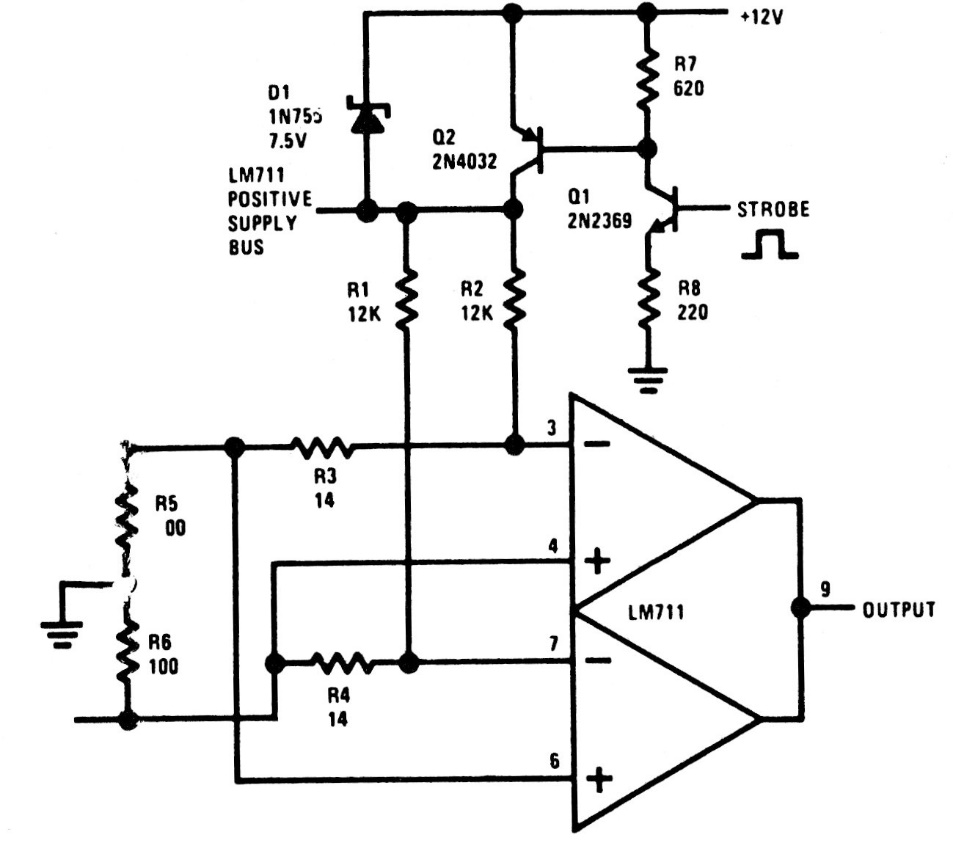

The purpose of the strobe circuit in this sensor amplifier is to reduce consumption. The circuit is from old documentation (1970s), but the idea can be used in modern applications.




| Clique na imagem para ampliar |
