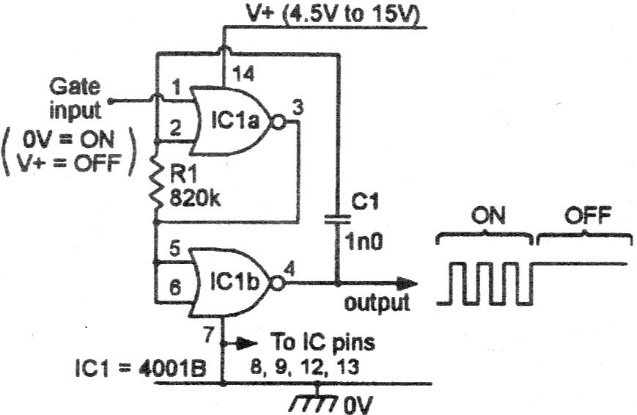

With the values of the components used in this circuit, the signal produced is 800 Hz rectangular. Supplying 5 V the circuit can work as an excellent shield for microcontrollers.
Controlled CMOS Oscillator (CB19228E)
- Details
- Written by: Newton C. Braga
