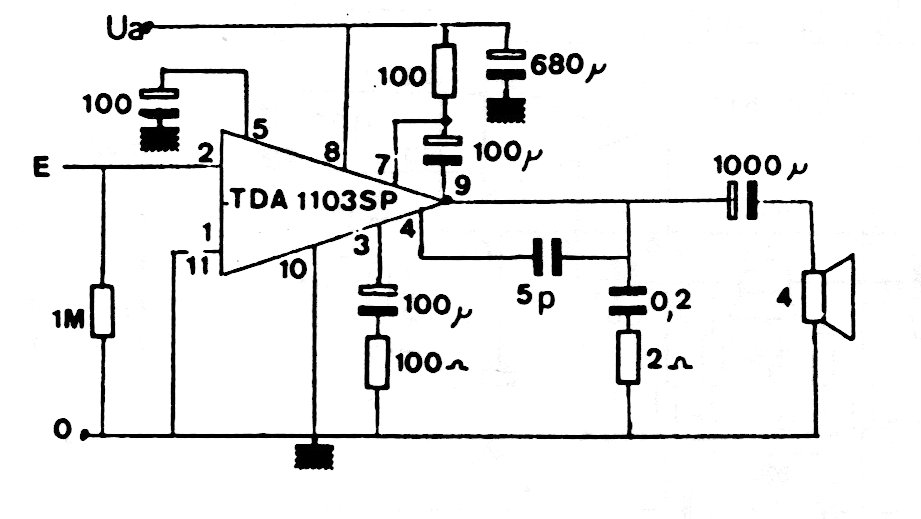

15 W amplifier TDA1035P (CB19164E)

Details
Written by: Newton C. Braga



The integrated circuit used in this amplifier is uncommon today, since the project is from the 90s. The power is 24 V, and the gain of the circuit is 40dB. The input resistance is 1 M ohms.
