Active Switch (CB19851E)

Details
Written by: Newton C. Braga

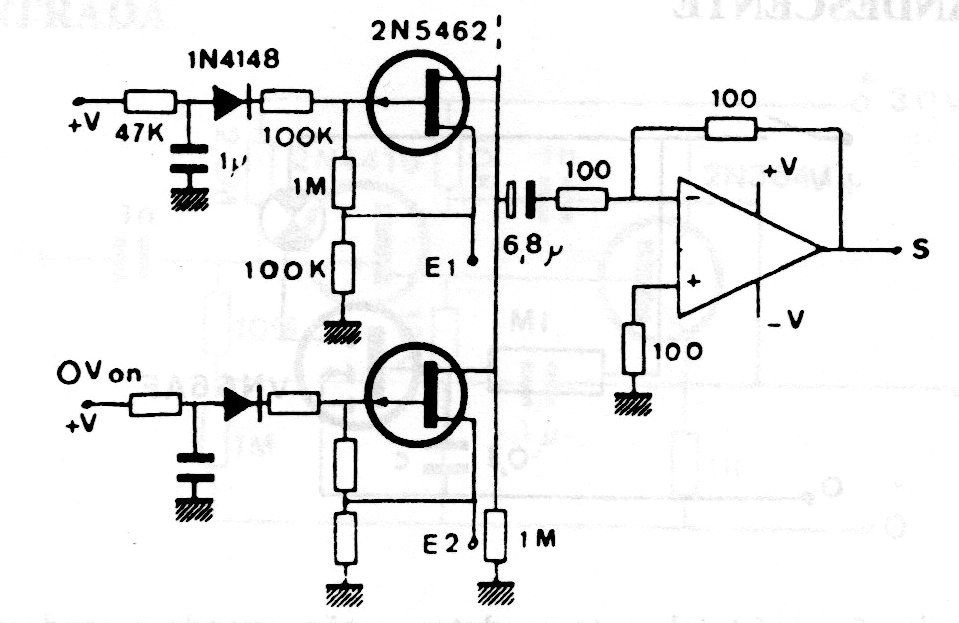

This is a two-input audio switching circuit. The operational can be of any type and more entries can be added. The power supply must be symmetrical.
