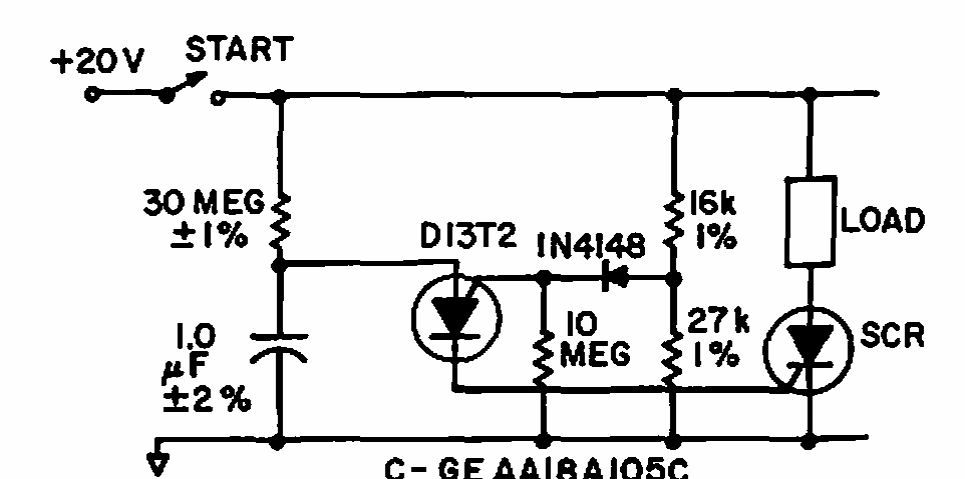

30 s delay with PUT (CB21417E)

This circuit was obtained from a General Electric documentation from 1967. The time is given by the RC network at the PUT trigger.

| Clique na imagem para ampliar |
