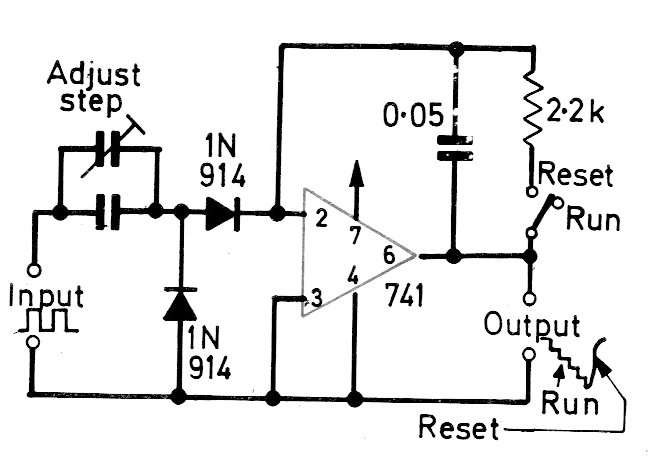

This configuration, which appears on other circuits on this site, was found in a European documentation from the 70s. It is valid for other operational, and the input must be a rectangular sign. The supply does not need to be symmetrical and can be between 6 and 12 V.
