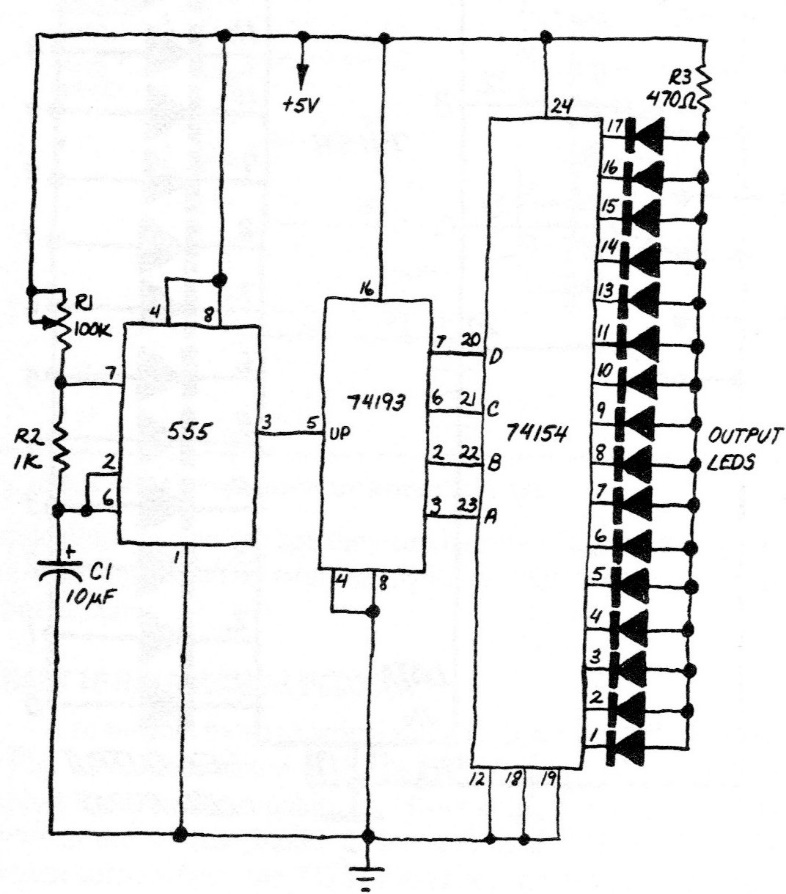

This circuit was found in an American publication from the 1980s. In the original version it drives LEDs, but the circuit can be modified to drive power steps. The frequency of the effect is adjusted in the potentiometer and the supply must be made with 5 V.
| Clique na imagem para ampliar |
