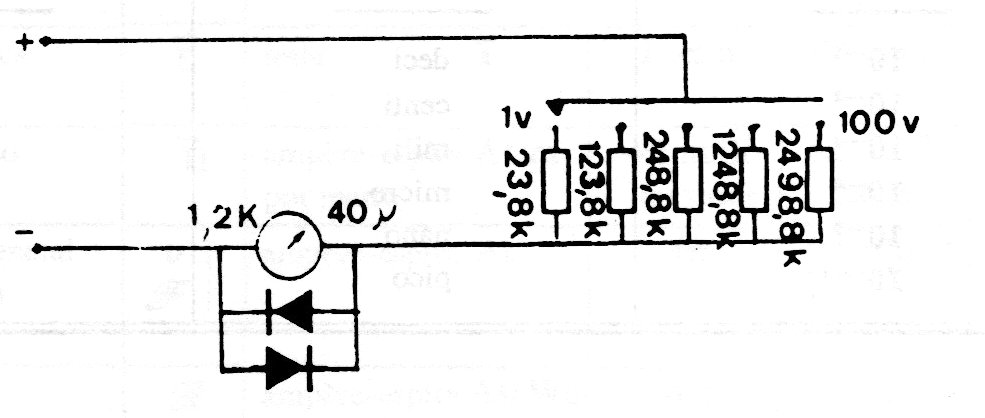

This voltmeter for continuous voltages has several scales and is totally passive. The diodes are for general use and the indicator instrument is a moving coil microammeter. The circuit measures from 1 to 100 V and its accuracy depends on the resistors.
