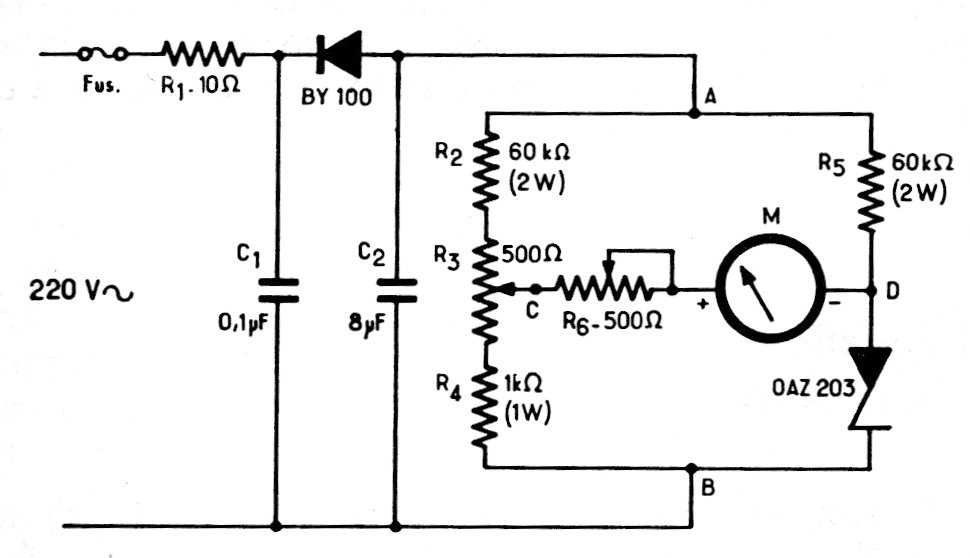

This circuit is used to monitor the mains voltage, in the case of 220 V. We found it in an old European publication, but it can be adapted to monitor other voltages. The scale has expanded values around the 220 V voltage set in the trimpots. The instrument is a 0 to 1 mA milliammeter.
