Band Pass Filter II (CB19688E)

Details
Written by: Newton C. Braga

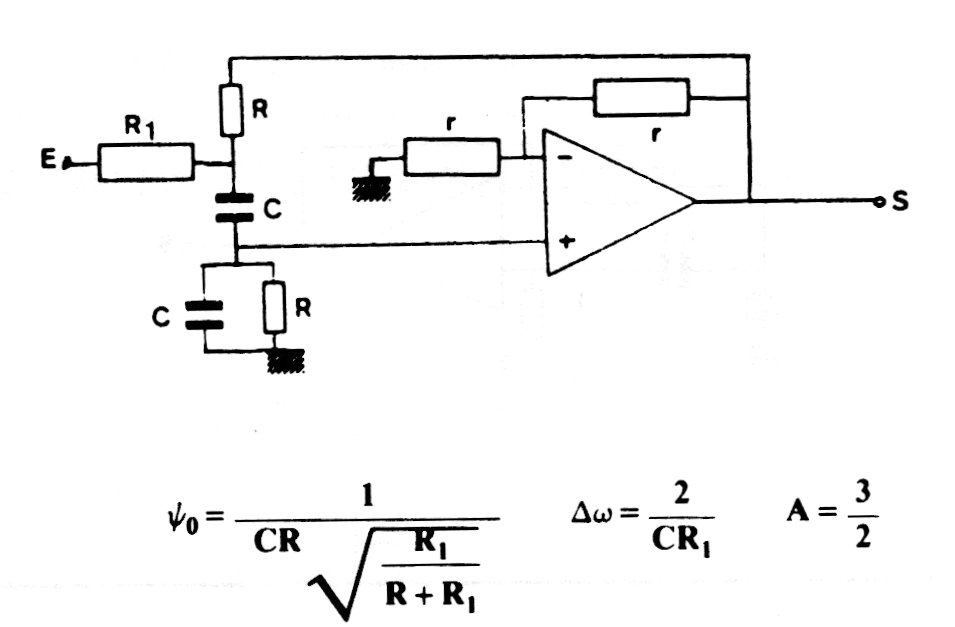

This filter has a regulated source configuration. It can be implemented with almost any operational amplifier. The formulas for calculating the components are attached to the diagram.
