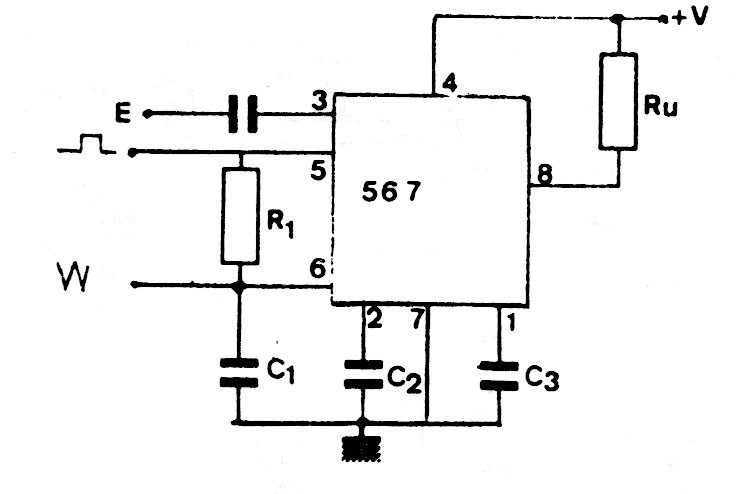

This circuit with the PLL567 serves as a decoder for PWM modulated signals of frequencies up to about 500 kHz. R1 and C1 determine the frequency and C2 and C3 can be from 10 nF to 100 nF depending on the application. The supply must be made with voltages from 5 to 10 V.
