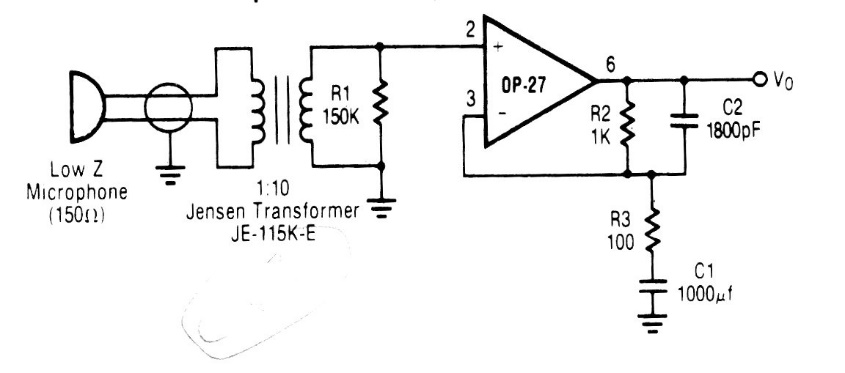

The low-noise amplifier shown uses a rare Raytheon operational amplifier today. The circuit can be implemented with more modern operators and the power source must be symmetrical.
| Clique na imagem para ampliar |
OP27 Microphone Amplifier (CB19720E)
