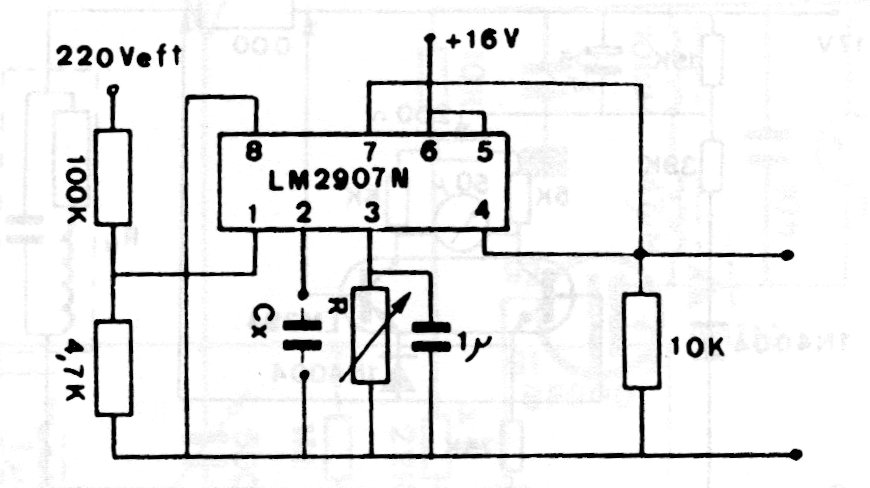

The integrated circuit used in this application is uncommon today. The circuit converts capacitances into voltages from 1 to 10 V for a capacitance range from 10 uF to 100 uF.
| Clique na imagem para ampliar |
Capacitance Meter (CB19855E)
- Details
- Written by: Newton C. Braga
