This circuit, already explored on this site, can be applied to other comparators in the same series. Power depends on the application. The circuit can be used as a shield.
| Clique na imagem para ampliar |

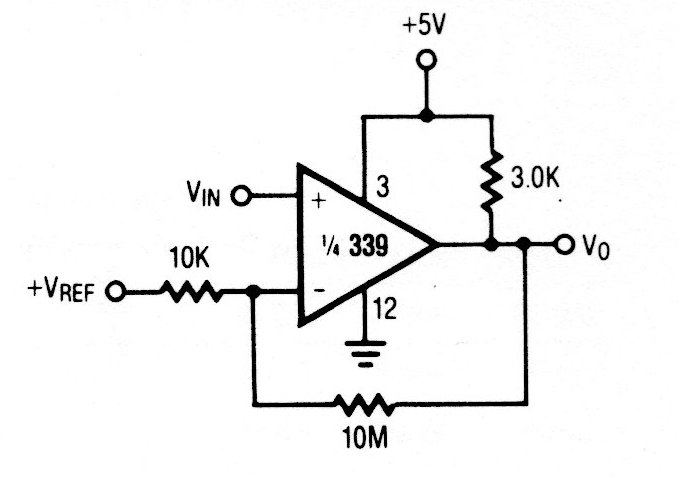

Comparator with Hysteresis LM339 (CB19791E)
