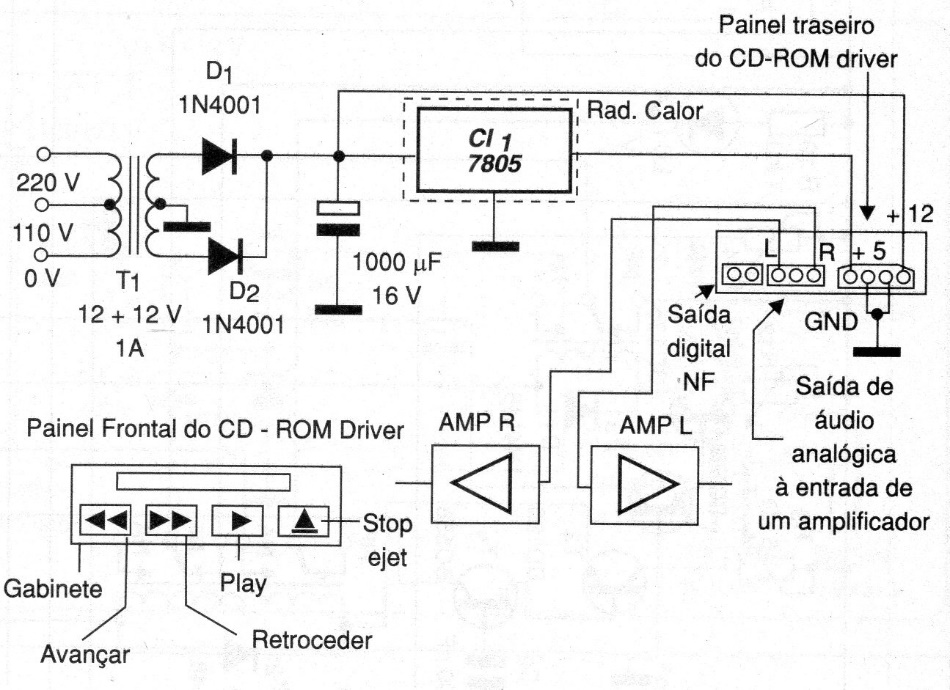

This 2003 application consists of showing how a computer CD-ROM can be used to play audio CDs in a simple sound system. The circuit includes the power supply and the ways of using the device. The voltage regulator CI1 must be equipped with a heat sink.
