Automotive Inverter 25 W (CB7179E)

Details
Written by: Newton C. Braga

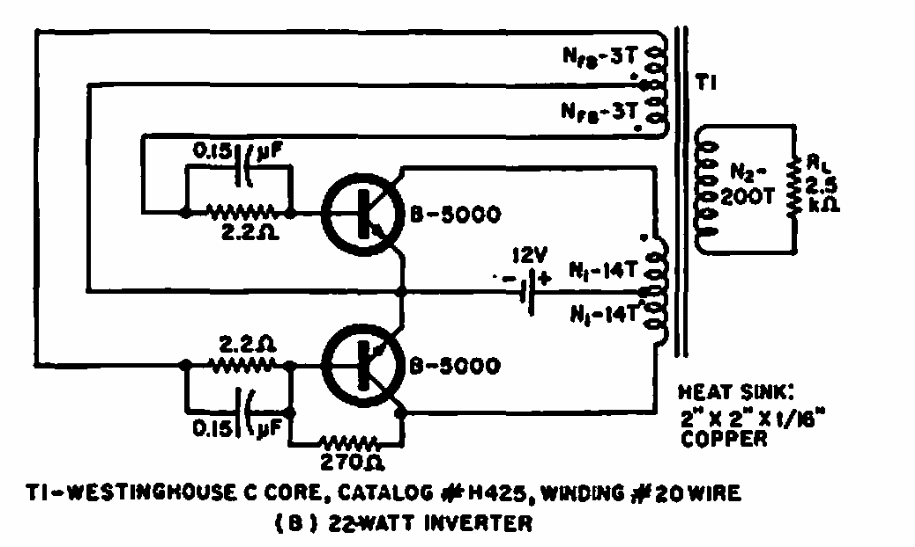

    We found this circuit in a 1968 Electronics World. The transistors are from the era and information about the transformer was included. Transistors support current equivalents.
