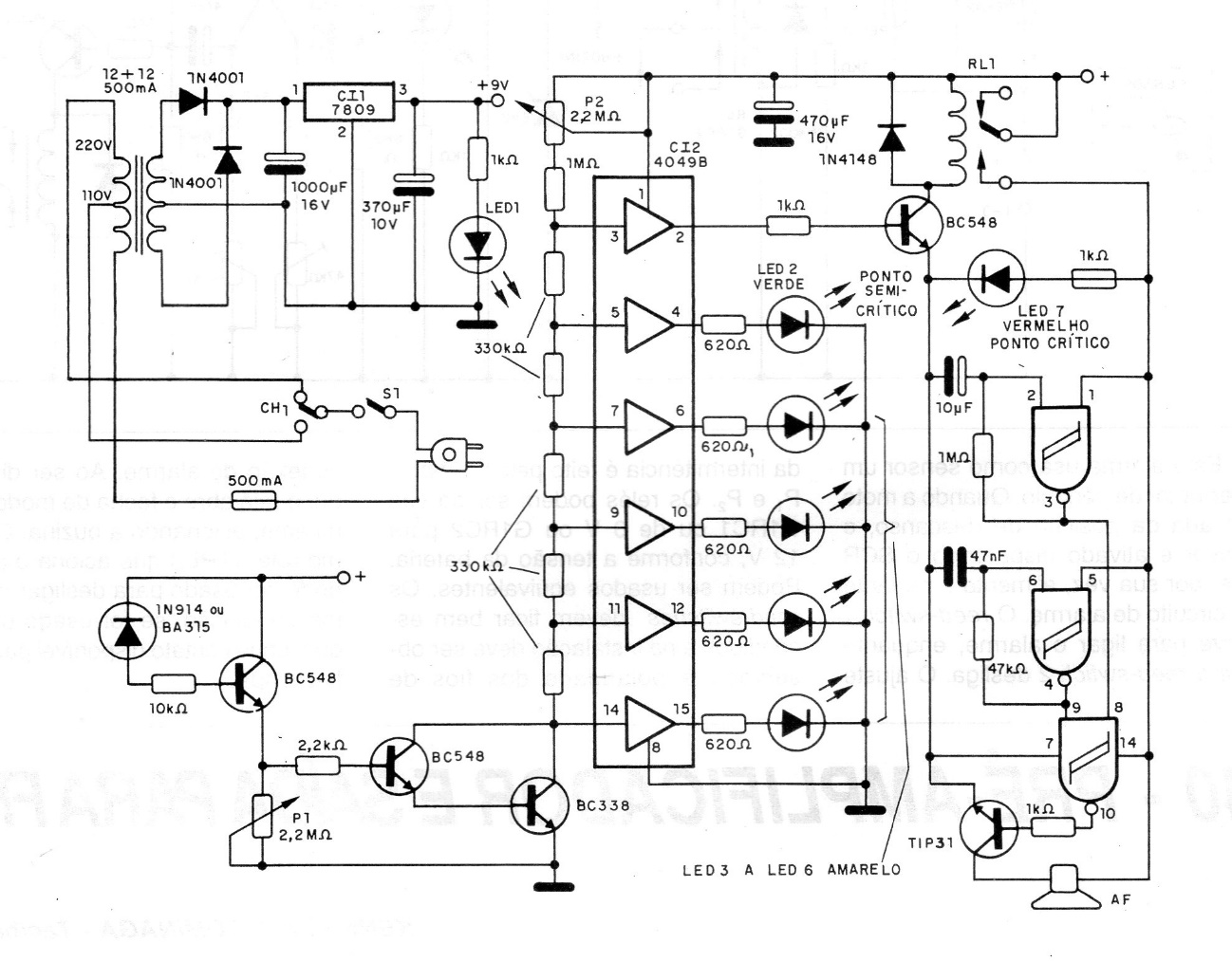

This circuit indicates variations in room temperature around a few degrees on a bargraph scale. The circuit is from 1995 documentation and the sensor is a common silicon diode. The circuit also has a relay that is activated when the temperature exceeds a certain pre-set value.
