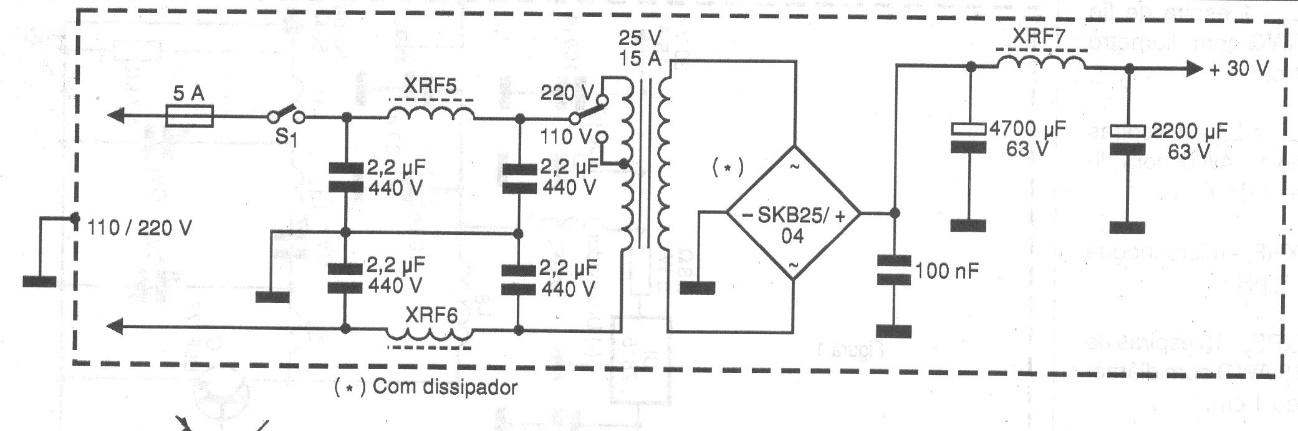

This source is indicated for the supply of power amplifiers. The circuit is from 1999 documentation. The diodes are for 15 A bridged. The circuit includes an input filter where the shocks consist of a few turns of wire 14 in a ferrite rod.
| Clique na imagem para ampliar |
