Audio Mixer Preamplifier (CB23904E)

Details
Written by: Newton C. Braga

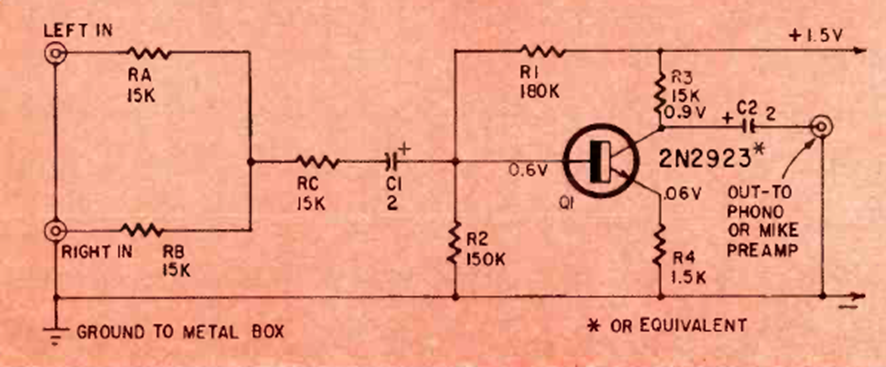

This simple 1-transistor audio preamplifier appeared in the June 1968 Radio Electronics magazine. The transistor is a general-purpose type of the time. The gain is 14 dB.
