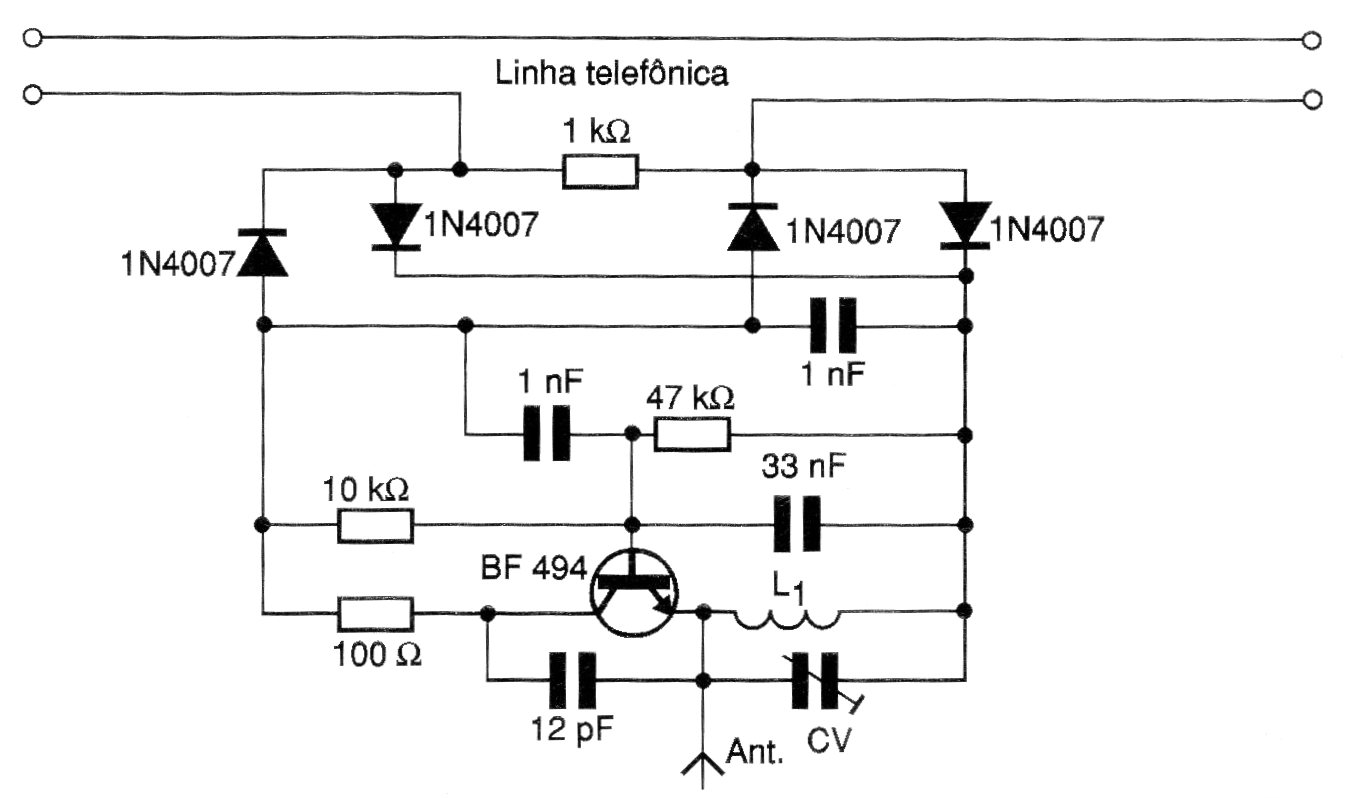

This circuit transmits the audio signals from a telephone line to an FM receiver placed nearby. The coil has 4 turns of wire 28 in the form of 1 cm without core. The trimmer is 2-20pF or greater.
| Clique na imagem para ampliar |
Telephone Spy (CB18047E)
- Details
- Written by: Newton C. Braga
