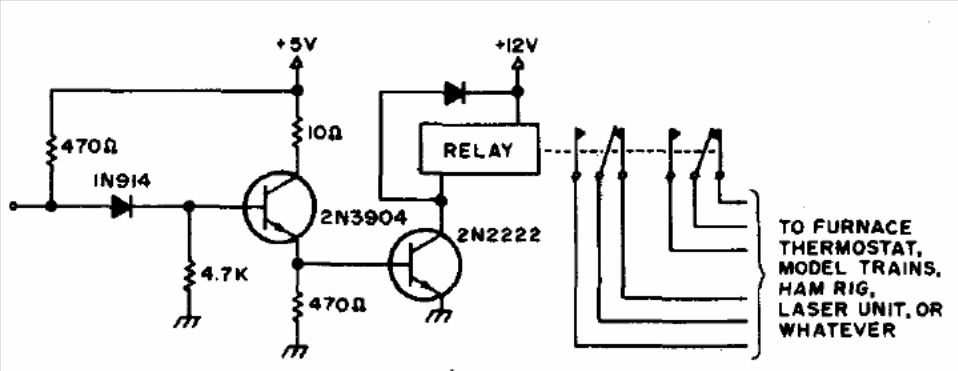

Relay Drive (CB13907E)

Details
Written by: Newton C. Braga



This circuit is from an old American documentation from the 70s. Transistor 2N3904 can be replaced by BC548. The relay must have 100 mA of maximum current.
