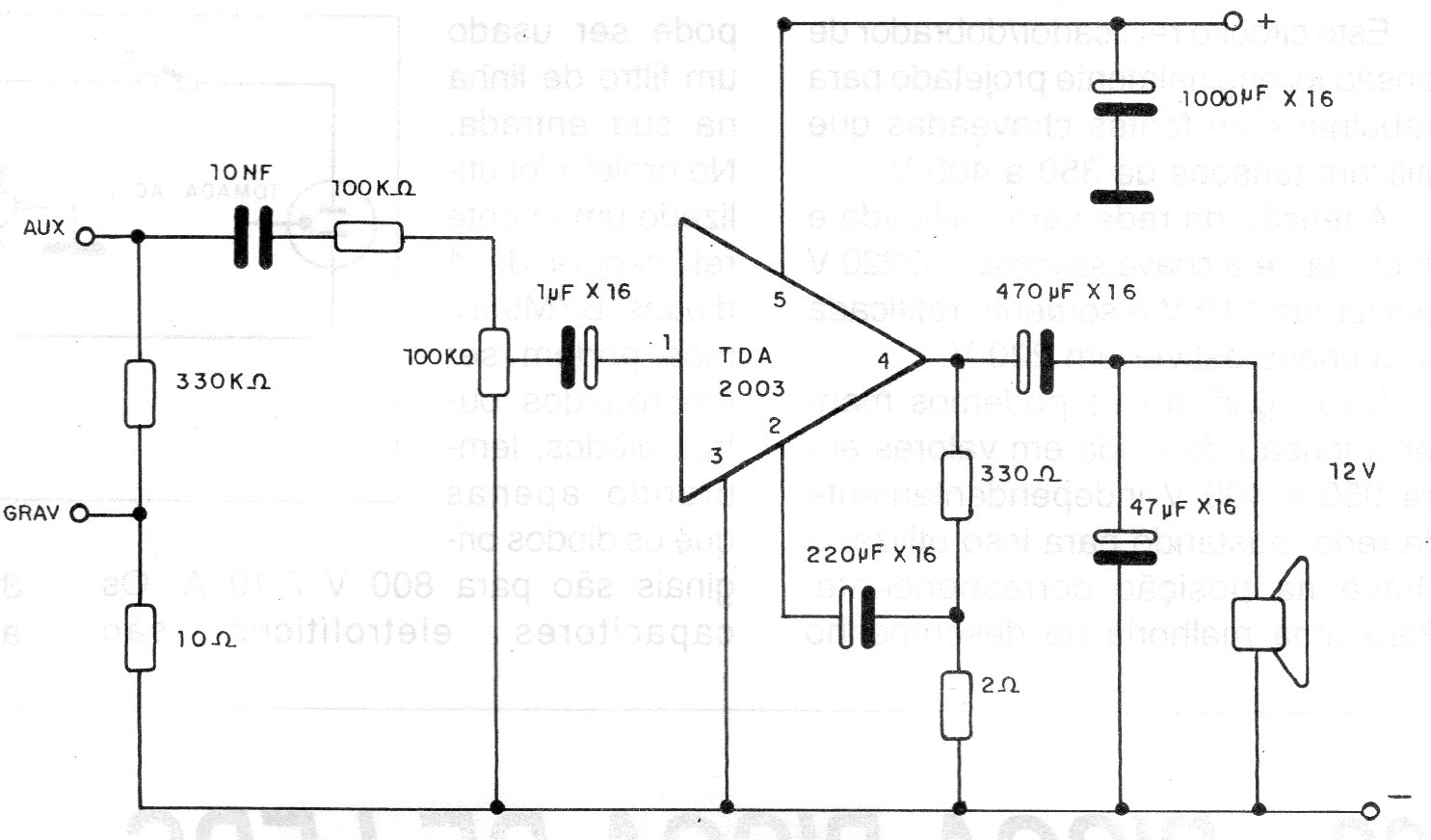

This is the normal configuration for the TDA2003 integrated circuit, an amplifier that can provide 10 W of power with a 4 ohms load. The circuit can be powered by a 12 V source with at least 2 A. The integrated circuit must have a good heat sink.
