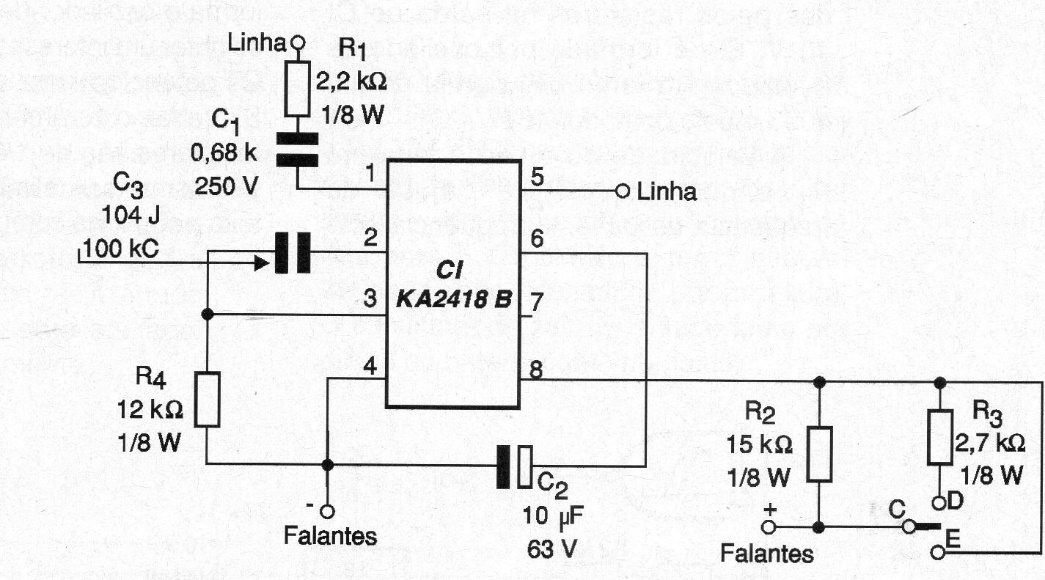

Electronic Bell for Telephone (CB17982E)

The integrated circuit used in this 2002 project is not very common. It is powered directly by the telephone line, requiring no power supply.

| Clique na imagem para ampliar |
