Optocoupler (CB17510E)

Details
Written by: Newton C. Braga

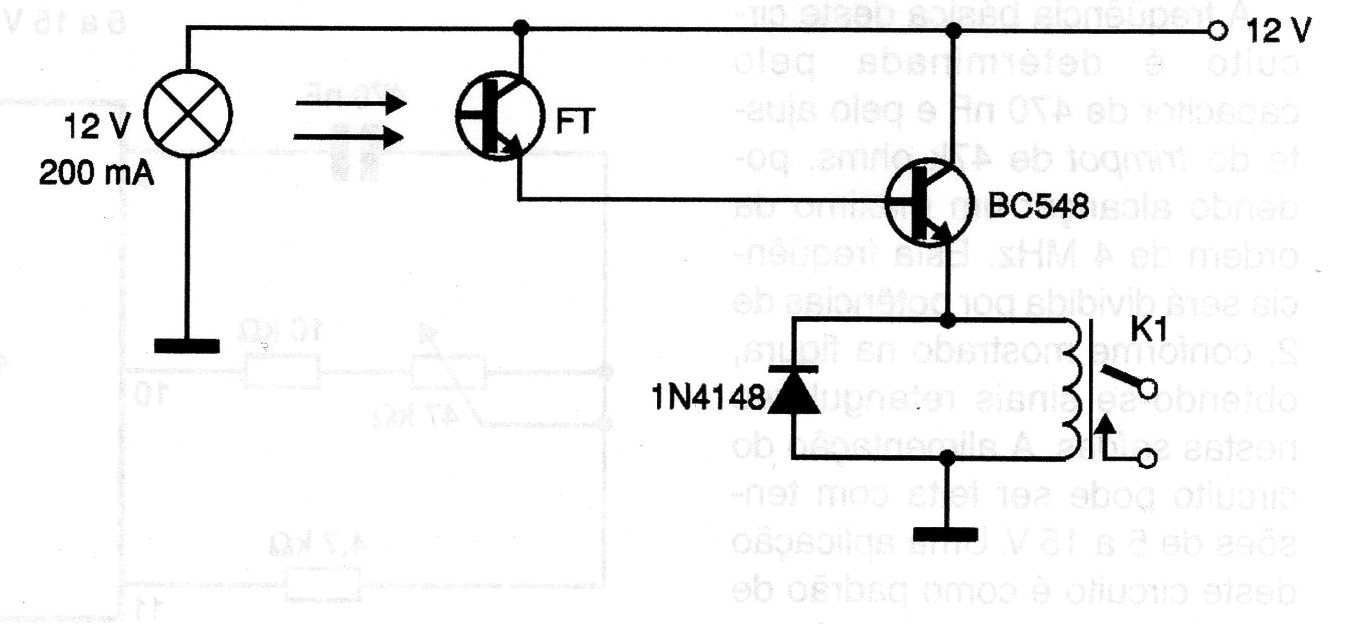

This optical coupler for short distances is powered by 12 V which is the voltage of the lamp and the relay. The circuit can also use emitting LEDs and the phototransistor can be of any type.
