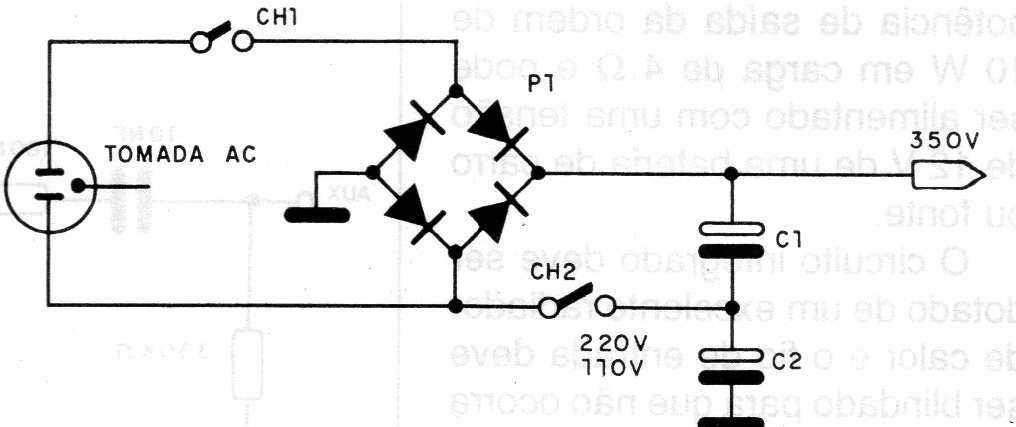

This simple voltage doubler provides a continuous voltage at its output that is twice the peak value of the alternating input voltage. The maximum current will depend on the diodes and capacitors that can have values between 10 and 100 uF.
