Crystal Oscillator (CB22570E)

Details
Written by: Newton C. Braga

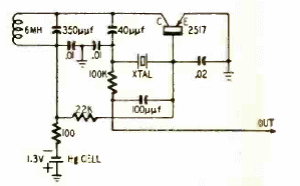

This oscillator uses germanium transistors. It was found in the Radio Electronics magazine of may 1953. The crystal determines the frequency, being a maximum of 1 MHz.
