Soldering Iron Bench (CB17059E)

Details
Written by: Newton C. Braga

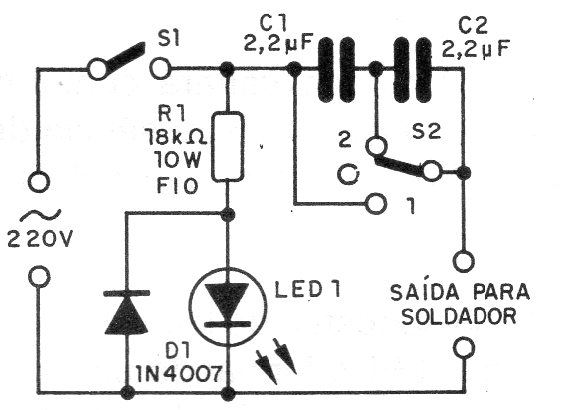

This simple power reducer, based on capacitive reactance, was found in a 1995 documentation. The capacitors must be made of polyester with at least 600 V of working voltage. The circuit is for irons up to 30 W.
