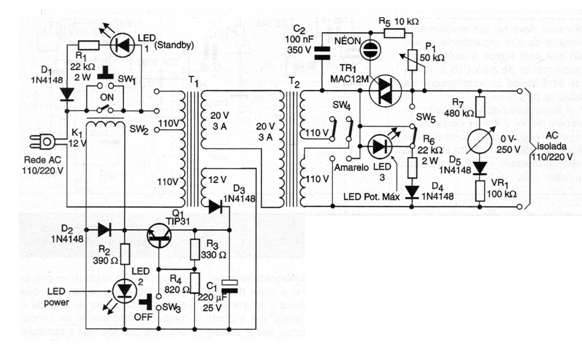

This 2005 soldering station has two isolation transformers for added security; The circuit also has a power control with triac, functioning in this way as variac. The triac must be equipped with a heat sink and the maximum output power is 60 W. The circuit works on the 110 V or 220 V power grid.
