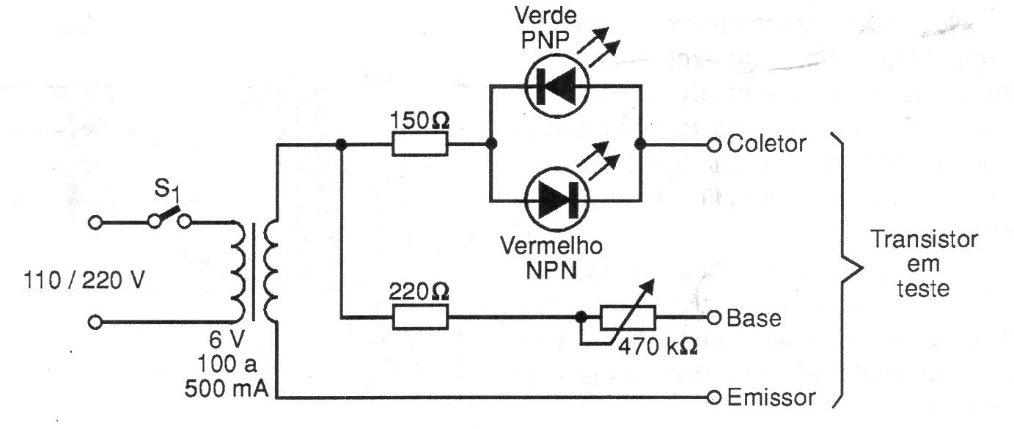

This circuit is used to test PNP or NPN transistors giving the status indication through LEDs. The transformer can be 6 V or close to 50 to 500 mA. General-purpose and medium power transistors can be tested.
| Clique na imagem para ampliar |
Simple Transistor Test (CB17139E)
- Details
- Written by: Newton C. Braga
