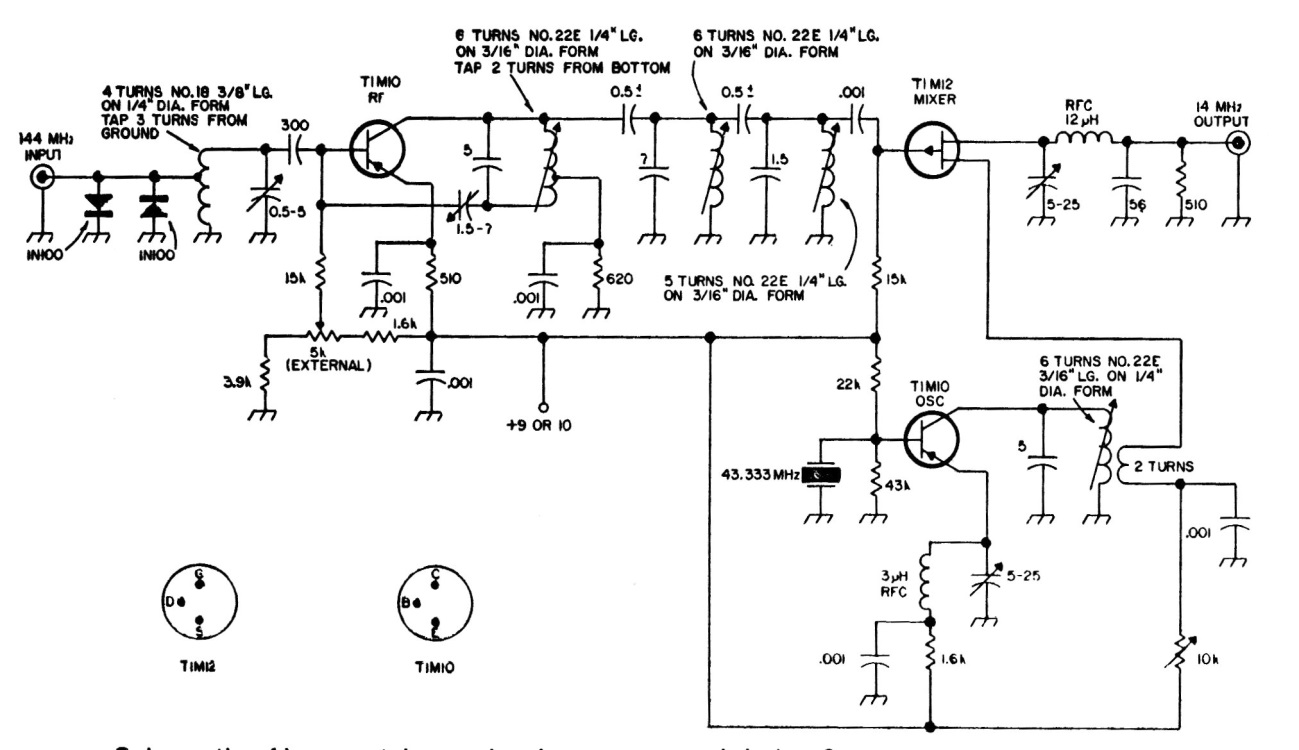

2 m range converter (CB20263E)

This converter for the 150 MHz band was found in an American documentation. Transistors are uncommon today and equivalents can be used.

| Clique na imagem para ampliar |
