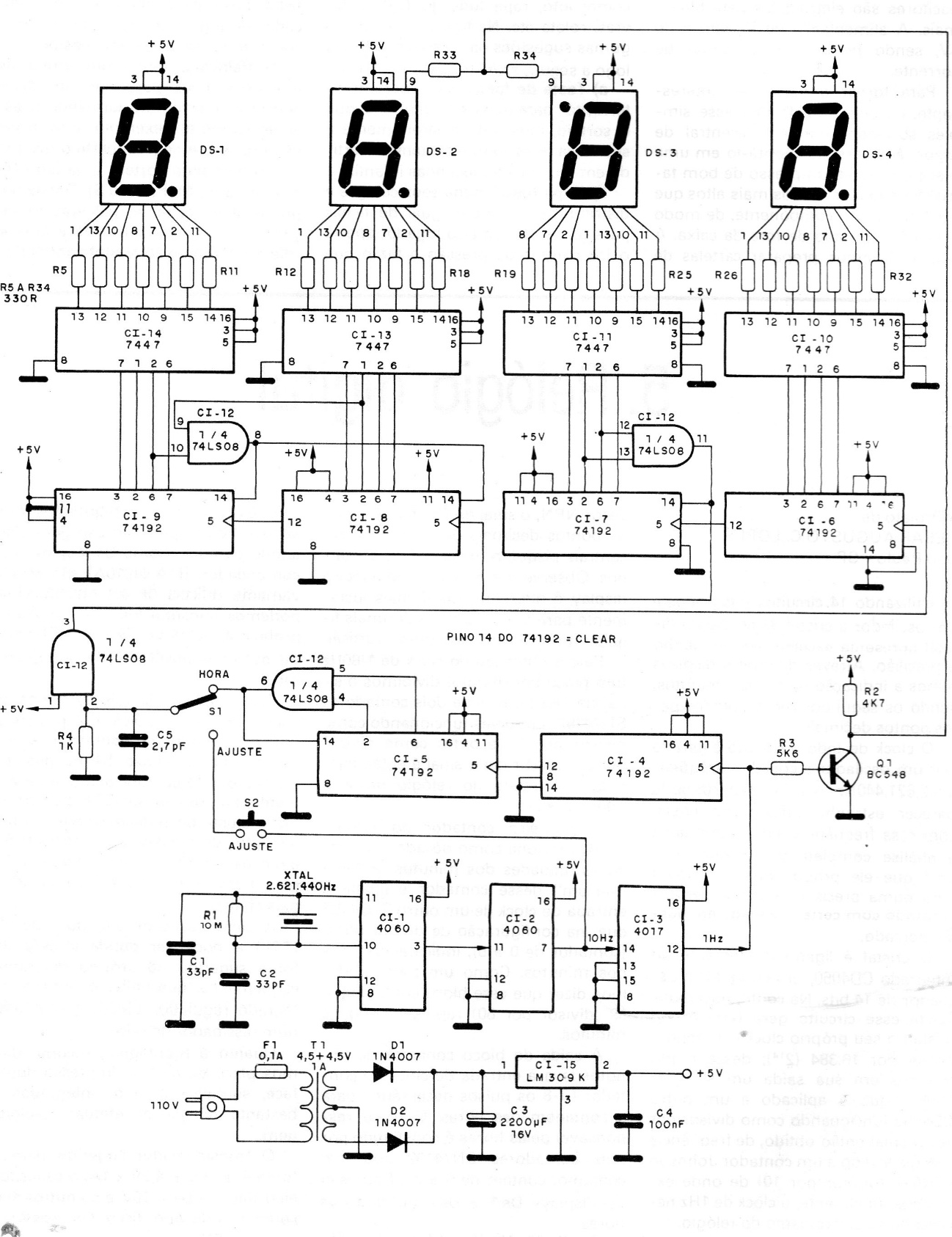

This 4-digit digital clock is ideal for anyone looking for a TTL project for school. The circuit uses common anode displays and was found in a 1988 documentation. Its accuracy is quite high since it uses a crystal to count the time. The circuit also has adjustment buttons.
| Clique na imagem para ampliar |
