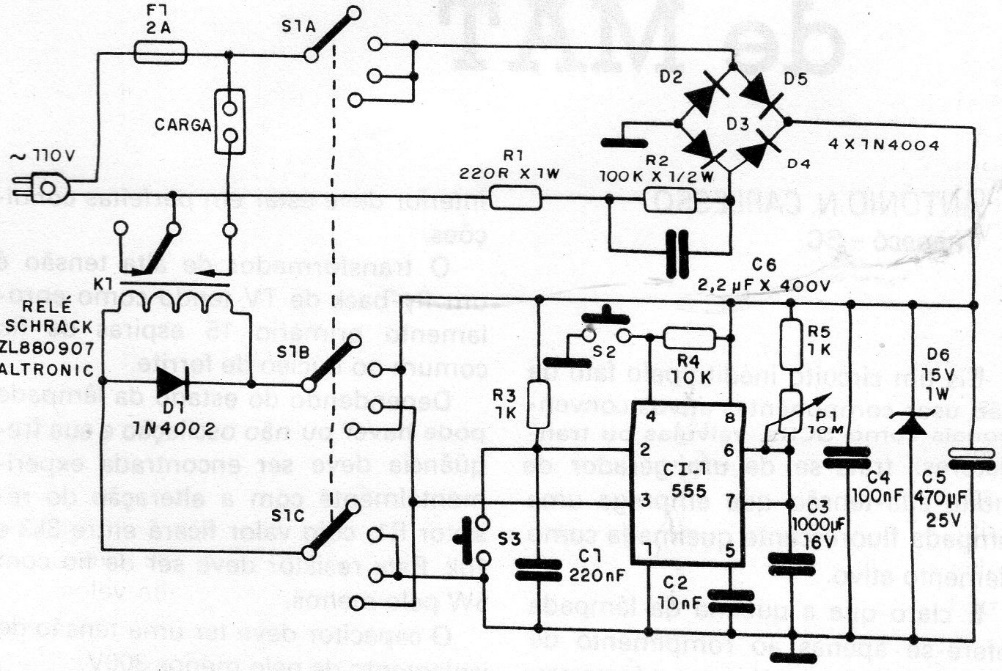

This timer uses common components today. It activates a relay after intervals that can be adjusted up to close to 1 hour with the indicated components. The circuit has the time setting in P1 and S2 is a reset that discharges the time capacitor. The relay is sensitive to 12 V. The circuit includes a source without a transformer.
