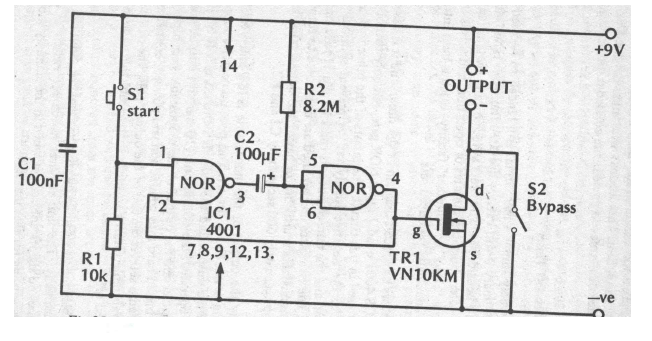

This timer was found in English documentation from the 80's. The integrated circuit is common nowadays and the MOSFET admits equivalent according to the controlled load.
| Clique na imagem para ampliar |
CMOS Timer (CB22179E)
- Details
- Written by: Newton C. Braga
