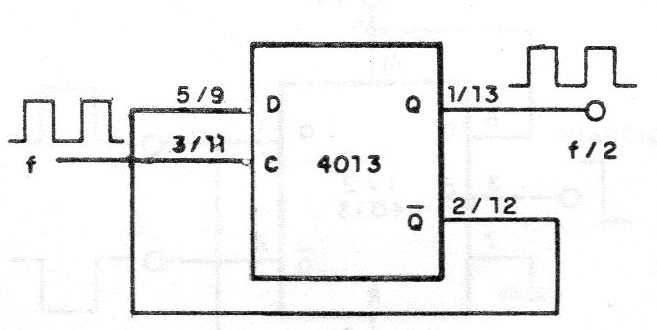

In the figure we give a simple divisor by 2. The complementary output (Q /) is connected to input D, to drive the circuit by dividing the frequency of the input signal by 2. The maximum frequency, on the order of 10 MHz, depends on the supply voltage that can be in the range of 3 to 15 V.
