Motorcycle Timed Alarm (CB16869E)

Details
Written by: Newton C. Braga

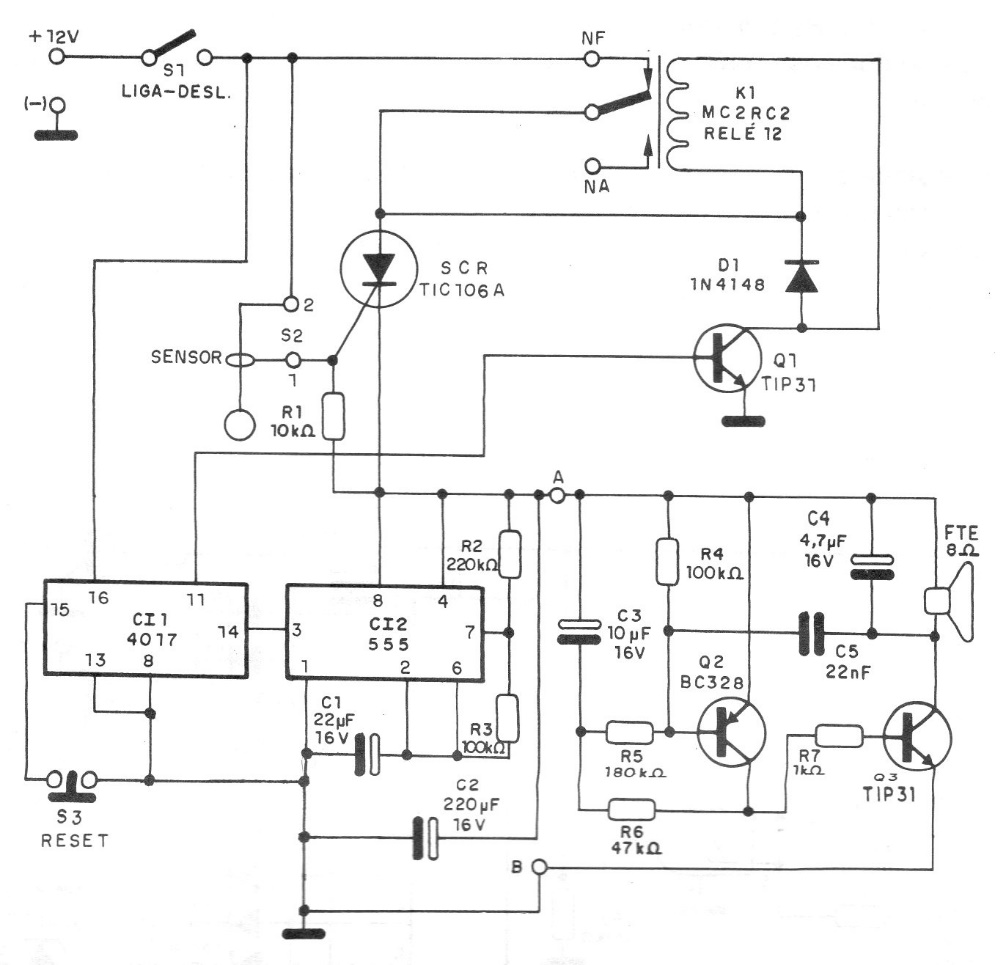

This circuit can use a pendulum sensor. We found this configuration in a 1994 publication. The components used are common and the timing is given by the capacitor C1 which can be changed.
