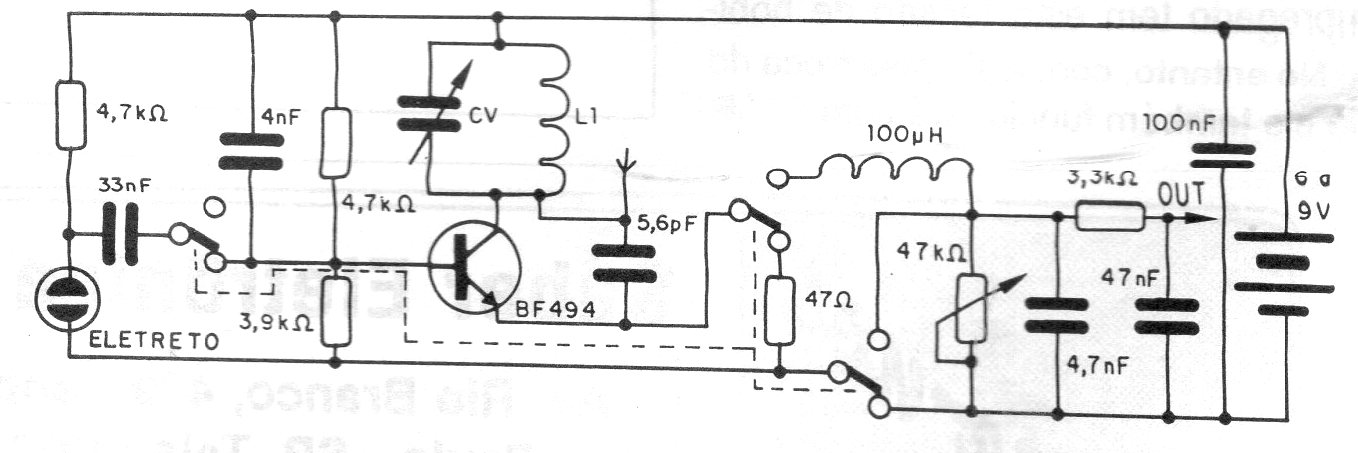

This circuit was found in a 1994 documentation. Its signal is applied to any small integrated amplifier like the TDA7052. The coil consists of 4 turns of 24 or 26 threads in the form of 1 cm without core. The antenna is 15 to 40 cm long and the range is around 50 meters.
