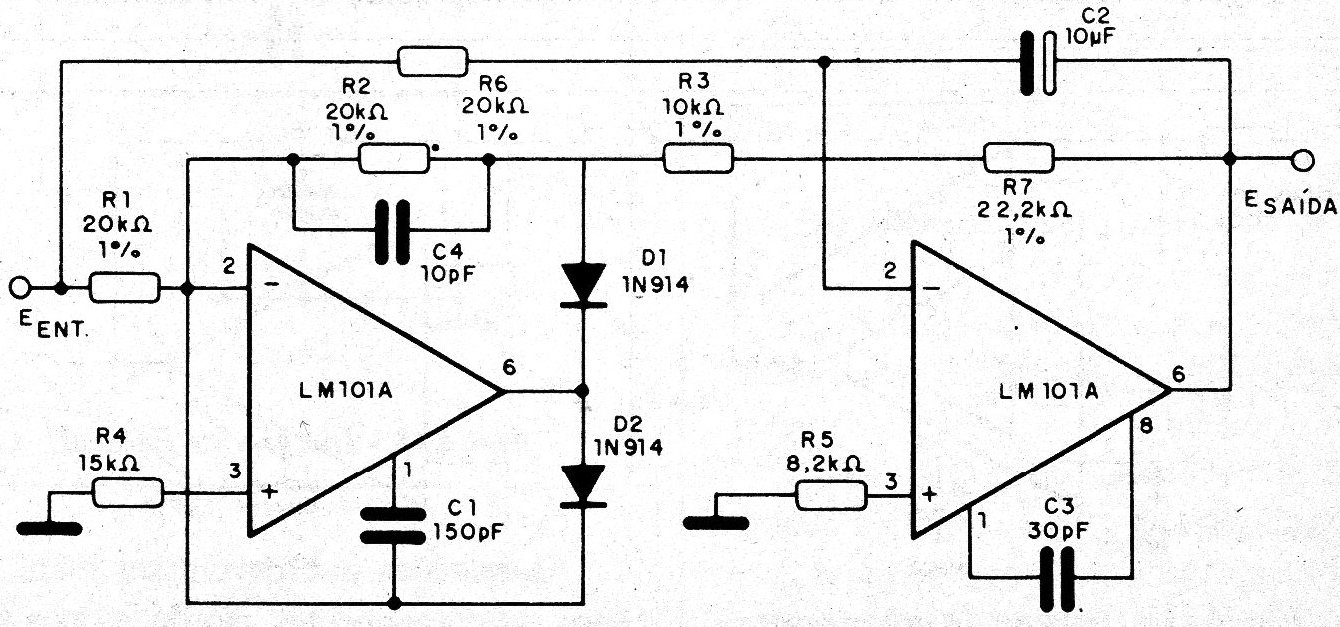

This circuit used in instrumentation is suggested by National Semiconductor, now Texas Instruments and makes use of two LM101A. Operational ones can be replaced by equivalents and the power supply must be symmetrical.
| Clique na imagem para ampliar |
