Very Low Distortion Amplifier (CB15820E)

Details: Written by: Newton C. Braga

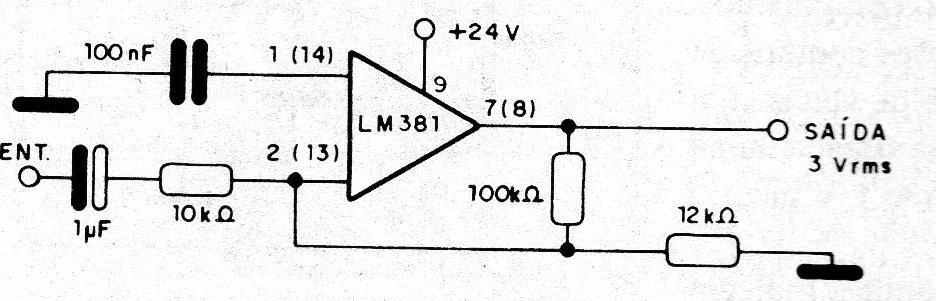

This circuit uses an unusual operational amplifier nowadays and has a very low consumption. The number in parentheses corresponds to the second channel, for a stereo version.
