Product Detector for SSB (CB4192E)

Details
Written by: Newton C. Braga

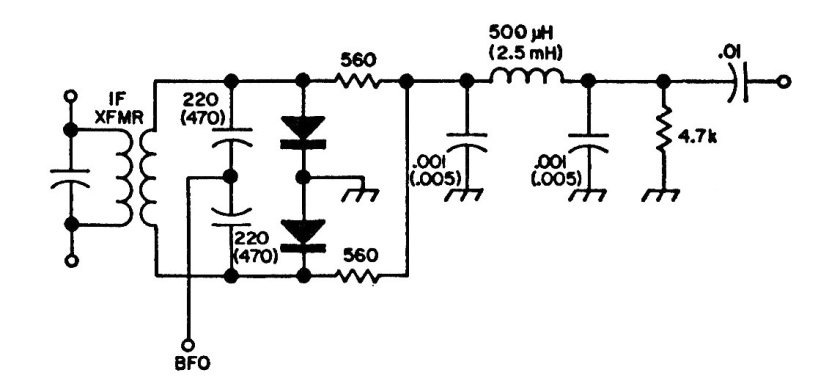

    This circuit was found in a 1980s documentation for amateur radio. The circuit is for 9 MHz signals and values in parentheses for FI of 455 kHz. The circuit can be adapted to other frequencies.




| Clique na imagem para ampliar |
