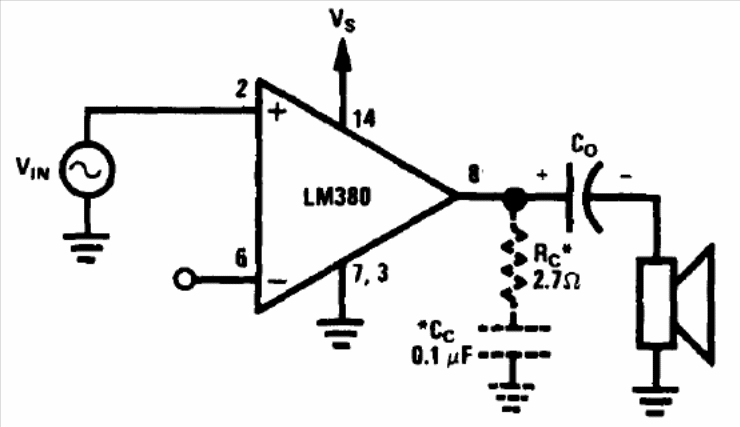

This is the minimum amplifier configuration with the LM380 and can provide an output of up to 2.5 W depending on the supply voltage. The power can be between 9 and 14 V and the circuit has excellent performance.
| Clique na imagem para ampliar |
Up to 2.5 W LM380 amplifier (CB14164E)
