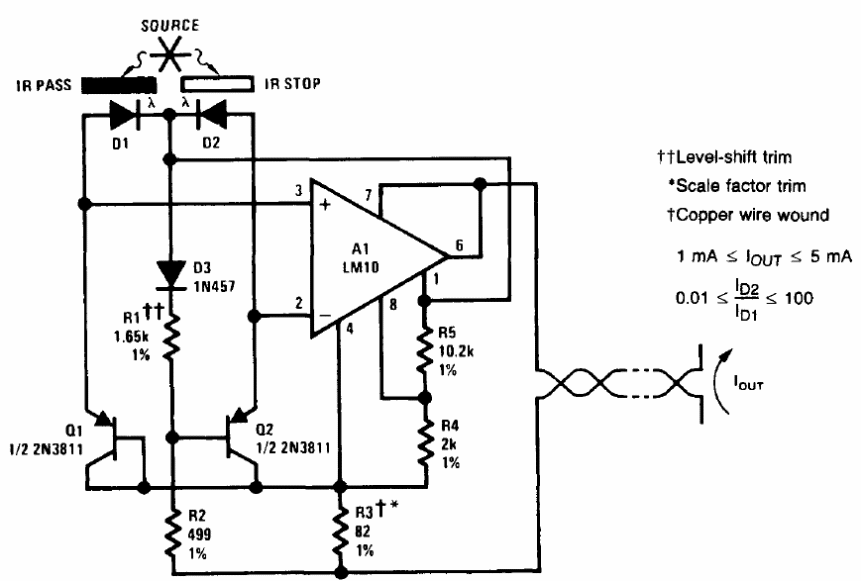

The sensors in this circuit are photodiodes with filters. The circuit is suggested by the National Semiconductor Linear Applications Handbook and is based on the LM10, a not very common operational. The circuit can be adapted to operate with current components.
