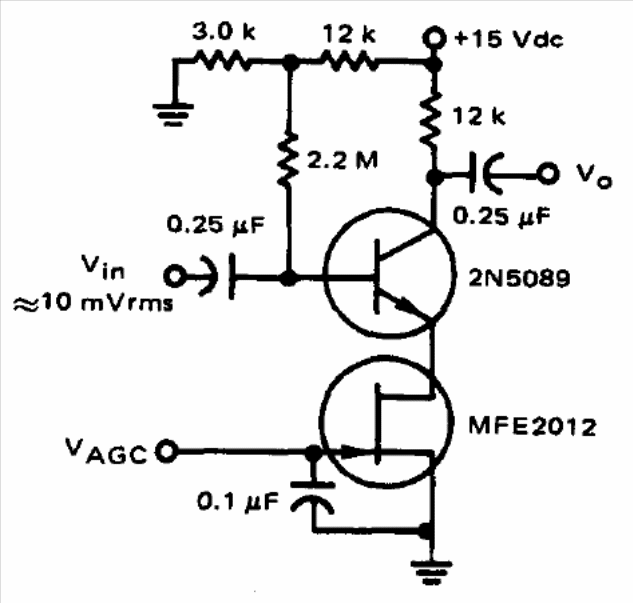

This step has a gain in the range of 30 dB determined by the control voltage Vagc. The FET can be BF245 or MPF102 and the transistor can be BC548 or 2N2222. The circuit is intended for low frequency applications only.
Controlled Gai Amplifier Stage (CB13703E)
- Details
- Written by: Newton C. Braga
