Variable High Q Filter with the 741 (CB13604E)

Details
Written by: Newton C. Braga

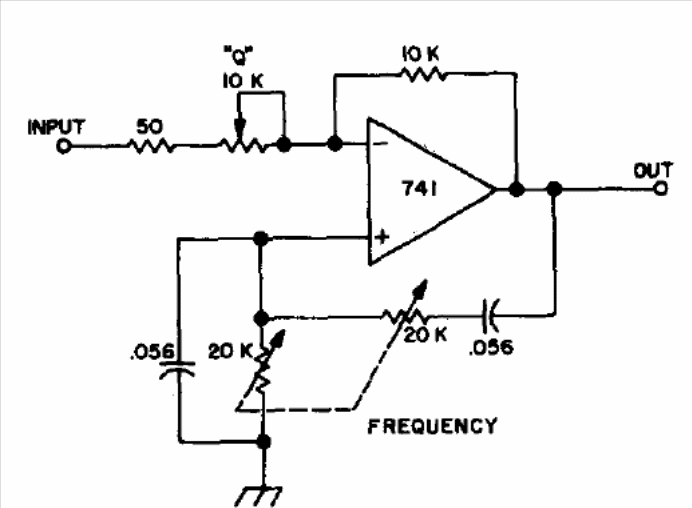

This circuit was found in a 1973 publication. With the components indicated, the range can be from 9 Hz to 300 Hz in width. The power supply must be symmetrical. Components can be changed according to the desired performance.




| Clique na imagem para ampliar |
