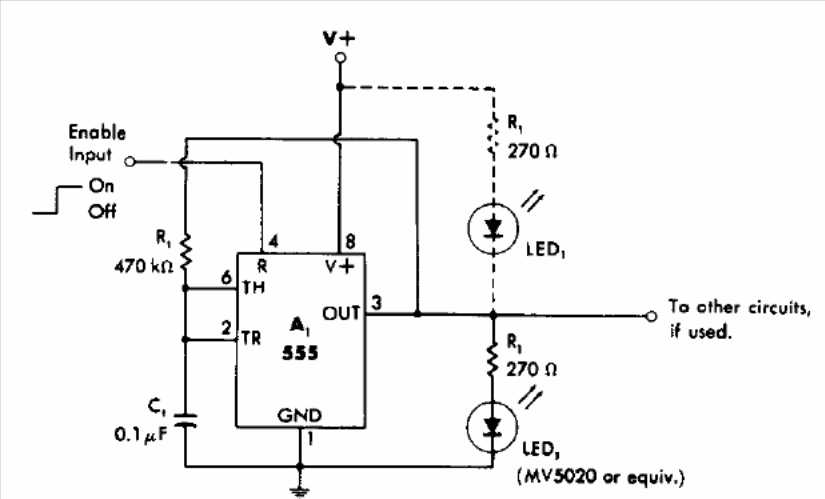

When the input of this circuit goes to high level, the LEDs start to flash alternately. The frequency can be changed in R1 and the supply must be the same as the trip logic. The circuit is from an American publication about 1977 timers.
