Voltage to Frequency Converter LM331 (CB14339E)

Details
Written by: Newton C. Braga

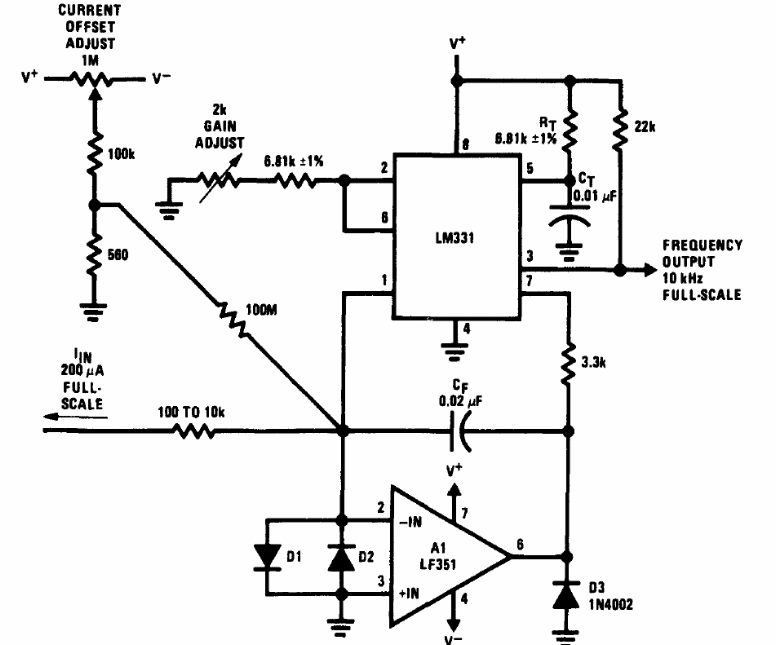

The circuit shown is from National Semiconductor, having been found in the 1994 Linear Application Handbook. Rt and Ct determine the output frequency.
