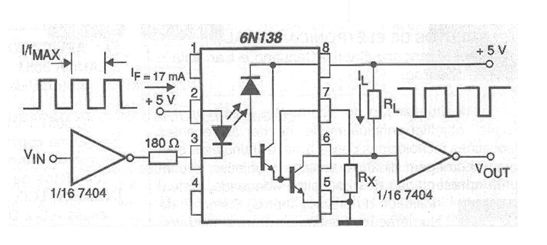

The shield circuit shown in the figure has elements to obtain the maximum gain with the maximum speed. By setting the gain and speed, the circuit can be used in several applications. The table given below provides typical values for circuit performance:
Rx(ohms) RL(ohms) IL(mA) f(max) kHz
nenhum 100 48 250
820 1000 4,6 680
